50mm - 300mm
Jingda Flex
39173200

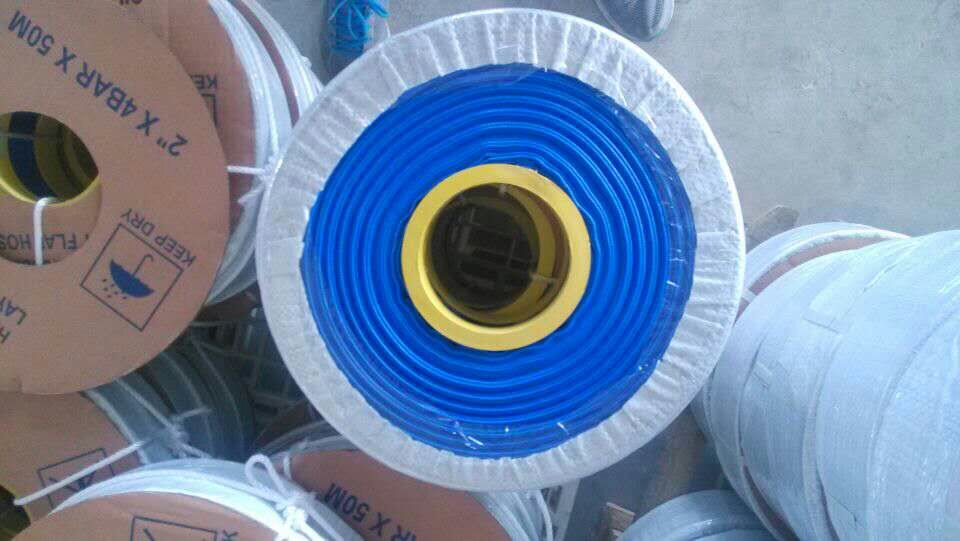

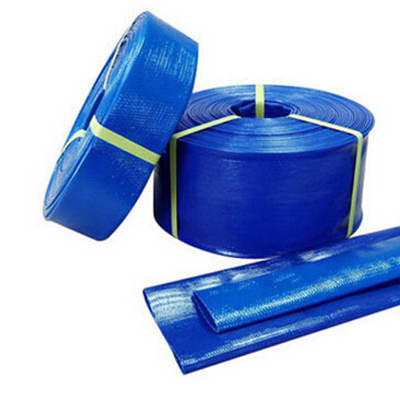

PVC lay flat irrigation hose 4 bar
Application: Suitable for conveying liquid in industry，agriculture irrigation，
mines and civil engineering.
Features: Online knitting and co-extrusion make the lay-flat hose have good
appearance and low weight; and excellent performances of high burst pressure and long service life. It is acid &alkali，aging resistant，stretching resistant，anti-wrinkle，non-toxic and flavorless.
Temperature: -5℃~65℃
PVC QUALITY HIGH-PRESSURE LAYFLAT HOSE（4bar）
W.P. | B.P. | weight | Packing size | Volume | ||||
At 23℃ | ||||||||
Inch | I.D mm | Thickness mm | m/Roll | BAR | BAR | KG/roll | D x H cm | M3 |
1″ | 26 | 1.3 | 100 | 4 | 12 | 15 | 67x5 | 0.022 |
1-1/4″ | 33 | 1.2 | 100 | 4 | 12 | 17 | 64x5 | 0.025 |
1-1/2″ | 41 | 1.25 | 100 | 5 | 15 | 20.5 | 63x7 | 0.028 |
2″ | 53 | 1 | 100 | 4 | 12 | 23 | 60x9 | 0.032 |
2.5″ | 66 | 1.15 | 100 | 4 | 12 | 32 | 64x12 | 0.049 |
3″ | 78 | 1.05 | 100 | 4 | 12 | 36 | 64x14 | 0.057 |
4″ | 104 | 1.2 | 100 | 4 | 12 | 55 | 67x18 | 0.036 |
5″ | 128 | 1.35 | 100 | 4 | 12 | 75 | 68x22 | 0.102 |
6″ | 155 | 1.35 | 100 | 4 | 12 | 90 | 68x26 | 0.120 |
8″ | 207 | 2.2 | 100 | 3 | 9 | 178.5 | 79x34 | 0.212 |
10″ | 257 | 2.65 | 100 | 2.5 | 7.5 | 265 | 85x42 | 0.303 |
12″ | 308 | 2.55 | 100 | 2 | 6 | 291 | 85x50 | 0.361 |
