English
50mm-200mm
Jingda Flex
39173200

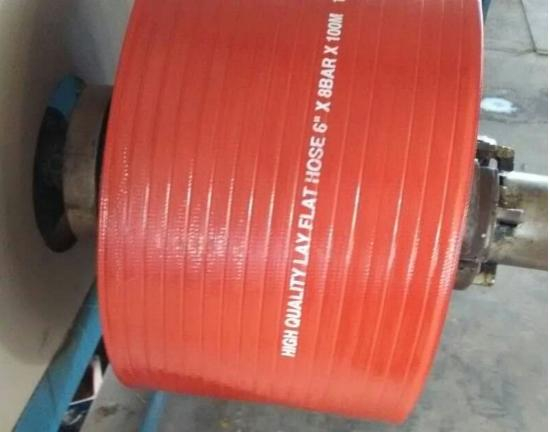

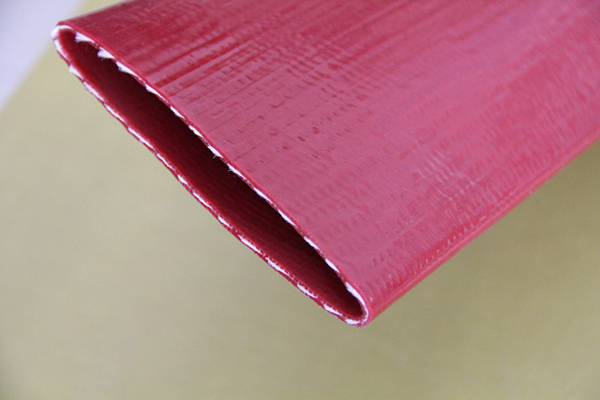

PVC lay flat irrigation hose 10 bar
Application: Suitable for conveying liquid in industry，agriculture irrigation，mines and civil engineering.
Features: Online knitting and co-extrusion make the lay-flat hose have good appearance and low weight; and excellent performances of high burst pressure and long service life. It is acid &alkali，aging resistant，stretching resistant，anti-wrinkle，non-toxic and flavorless.
Temperature: -5℃~65℃
PVC QUALITY HIGH-PRESSURE LAYFLAT HOSE（High pressure）
W.P. | B.P. | weight | Packing size | Volume | ||||
At 23℃ | ||||||||
Inch | I.D mm | Thickness mm | m/Roll | BAR | BAR | KG/roll | D x H cm | M3 |
3/4″ | 20 | 1.55 | 50 | 10.5 | 31.5 | 14 | 51x4 | 0.010 |
1″ | 26 | 1.7 | 50 | 10.5 | 31.5 | 20 | 53x5 | 0.014 |
1-1/4″ | 33 | 1.45 | 50 | 10.5 | 31.5 | 21 | 49x6 | 0.014 |
1-1/2″ | 41 | 1.9 | 50 | 10.5 | 31.5 | 29 | 51.5x7.5 | 0.020 |
1-3/4″ | 45 | 1.6 | 50 | 8 | 24 | 32 | 51.5x8 | 0.021 |
1-3/4″ | 45 | 2 | 50 | 10.5 | 31.5 | 35 | 53x8 | 0.022 |
2″ | 53 | 1.5 | 50 | 8 | 24 | 35 | 57x8 | 0.026 |
2″ | 53 | 2.05 | 50 | 10.5 | 31.5 | 42 | 57x9 | 0.029 |
2.5″ | 66 | 2.15 | 50 | 10.5 | 31.5 | 54 | 61x11.5 | 0.043 |
3″ | 78 | 2.25 | 50 | 9 | 27 | 66 | 62x13 | 0.050 |
3″ | 78 | 2.5 | 50 | 10 | 30 | 85 | 62x14 | 0.054 |
4″ | 104 | 2.55 | 50 | 9 | 27 | 100 | 63x18 | 0.071 |
6″ | 155 | 3 | 50 | 6 | 18 | 200 | 68x26 | 0.120 |
8″ | 207 | 2.95 | 50 | 5 | 15 | 220 | 63x34 | 0.135 |
8″ | 207 | 3.15 | 50 | 6 | 18 | 280 | 70x35 | 0.172 |
