25mm - 300mm
Jingda Flex
39173200

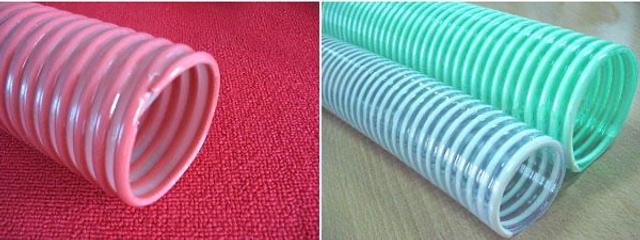

PVC Spiral Reinforced Hose
Application: Suitable for industry, agriculture and water conservancy, civil engineering, vacuum suction powder, granule, transporting water, oil etc.. Is a good substitute for rubber tube, the metal tube.
Features: Light weight, good elasticity, negative pressure resistance and weather resistance.
Temperature: -5℃ ～ 65℃
Inch | I.D. (mm) | O.D. (mm) | Length/roll (M) | W.P. (MPa) | B.P. (MPa) | Packing size (cm) | Volume (m3) |
5/8 | 16 | 21 | 50 | -0.1~0.4 | 1.0 | 600x230 | 0.083 |
3/4 | 19 | 25 | 50 | -0.1~0.4 | 1.0 | 610x160 | 0.060 |
1 | 25 | 32 | 50 | -0.1~0.6 | 2.0 | 660x200 | 0.087 |
1-1/4 | 32 | 40 | 50 | -0.1~0.7 | 2.1 | 780x320 | 0.194 |
1-1/2 | 38 | 46 | 50 | -0.1~0.6 | 1.8 | 730x340 | 0.181 |
2 | 51 | 60 | 50 | -0.1~0.6 | 1.8 | 900x320 | 0.26 |
2-1/2 | 64 | 73 | 20 | -0.1~0.5 | 1.5 | 820x300 | 0.202 |
3 | 76 | 86 | 20 | -0.1~0.4 | 1.2 | 910x350 | 0.29 |
4 | 102 | 113 | 20 | -0.1~0.3 | 1.0 | 1100x450 | 0.544 |
5 | 127 | 139 | 20 | -0.1~0.3 | 1.0 | 1250x600 | 0.94 |
6 | 152 | 166 | 20 | -0.1~0.3 | 1.0 | 1400x680 | 1.33 |
PVC Spiral Reinforced Hose
Application: Suitable for industry, agriculture and water conservancy, civil engineering, vacuum suction powder, granule, transporting water, oil etc.. Is a good substitute for rubber tube, the metal tube.
Features: Light weight, good elasticity, negative pressure resistance and weather resistance.
Temperature: -5℃ ～ 65℃
Inch | I.D. (mm) | O.D. (mm) | Length/roll (M) | W.P. (MPa) | B.P. (MPa) | Packing size (cm) | Volume (m3) |
5/8 | 16 | 21 | 50 | -0.1~0.4 | 1.0 | 600x230 | 0.083 |
3/4 | 19 | 25 | 50 | -0.1~0.4 | 1.0 | 610x160 | 0.060 |
1 | 25 | 32 | 50 | -0.1~0.6 | 2.0 | 660x200 | 0.087 |
1-1/4 | 32 | 40 | 50 | -0.1~0.7 | 2.1 | 780x320 | 0.194 |
1-1/2 | 38 | 46 | 50 | -0.1~0.6 | 1.8 | 730x340 | 0.181 |
2 | 51 | 60 | 50 | -0.1~0.6 | 1.8 | 900x320 | 0.26 |
2-1/2 | 64 | 73 | 20 | -0.1~0.5 | 1.5 | 820x300 | 0.202 |
3 | 76 | 86 | 20 | -0.1~0.4 | 1.2 | 910x350 | 0.29 |
4 | 102 | 113 | 20 | -0.1~0.3 | 1.0 | 1100x450 | 0.544 |
5 | 127 | 139 | 20 | -0.1~0.3 | 1.0 | 1250x600 | 0.94 |
6 | 152 | 166 | 20 | -0.1~0.3 | 1.0 | 1400x680 | 1.33 |
