SJ45/SJ55
Jingda
84778000

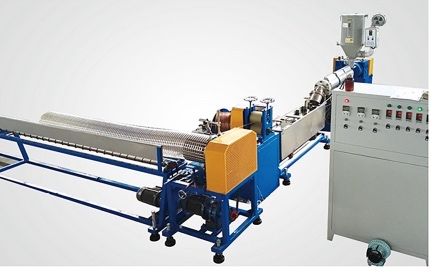

PU Duct Extrusion Line
Application: It is mainly used for conveying the solids with high high-speed flow ratio and high wearing, such as sand, gravel, grain, cullet and scraps; medium for gaseity and liquid, underground convey; convey hoses for glass factory. The port, steel mill, quarry, shipyard and cement mill use it as protective hose.
Features: It is high wear resistance protection, with reinforced steel wire and narrow inclination (Wear resistance is 2.5 –5 times higher than most rubber material and 6 – 8 times higher than soft PVC material). Flat and smooth inner wall make the flow run well. The weight is low and it has some elasticity.
Structure：Spiral elastic steel wire is embedded strongly in the hose wall, which makes exterior flowability optimized. Wall thickness is about 3 – 3.5mm, strengthen the main wearing parts.
Material： Hose wall: Pre-PUR. Spiral rib：elastic steel wire
Temperature range： -40°C to125°C ，can get up to 150°C in a short time.
Machine technical information:
Extruder | SJ55/28, SJ65/28, SJ80/28, SJ90/28 |
Pipe range(mm) | ￠25 — ￠500 |
Capacity (KG/H) | 20 — 200 |
