16mm-200mm
Jingda Flex
39173200

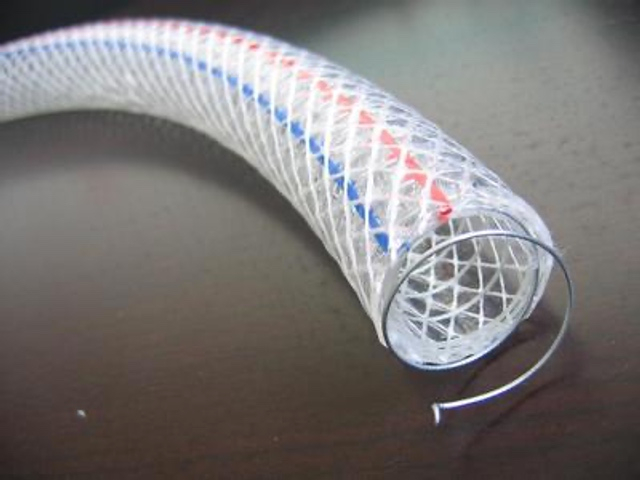

Steel wire and polyester fiber composite hose
Application: It is good for high-pressure convey of liquid and gas, also for the suction of pellets and dust.
Features: Steel wire and polyester fiber composite reinforcement make the hose has the performance to bear positive and negative pressure. The hose can keep the shape during process of suction and discharge.
Temperature: -5℃ to 65℃
Inch | I.D. (mm) | O.D. (mm) | Length (m/roll) | W.P. | B.P. | Weight (kg) | Packing size (mm) | Volume (m3) |
1 | 25 | 32 | 50 | -0.1~0.8 | 2.5 | 24 | 660X200 | 0.087 |
1-1/4 | 32 | 40 | 40 | -0.1~0.8 | 2.3 | 28 | 780X320 | 0.19 |
1-1/2 | 38 | 47 | 40 | -0.1~0.7 | 2.2 | 36 | 730X340 | 0.181 |
2 | 50 | 61 | 40 | -0.1~0.7 | 2.0 | 57.5 | 900X320 | 0.26 |
2-1/2 | 64 | 78 | 20 | -0.1~0.7 | 2.0 | 47.3 | 1000X240 | 0.24 |
3 | 75 | 90 | 20 | -0.1~0.6 | 1.8 | 58.3 | 1100X370 | 0.447 |
3-1/2 | 90 | 106 | 20 | -0.1~0.5 | 1.5 | 74 | 1060X440 | 0.494 |
4 | 100 | 116 | 20 | -0.1~0.5 | 1.5 | 82 | 1150x360 | 0.476 |
Steel wire and polyester fiber composite hose
Application: It is good for high-pressure convey of liquid and gas, also for the suction of pellets and dust.
Features: Steel wire and polyester fiber composite reinforcement make the hose has the performance to bear positive and negative pressure. The hose can keep the shape during process of suction and discharge.
Temperature: -5℃ to 65℃
Inch | I.D. (mm) | O.D. (mm) | Length (m/roll) | W.P. | B.P. | Weight (kg) | Packing size (mm) | Volume (m3) |
1 | 25 | 32 | 50 | -0.1~0.8 | 2.5 | 24 | 660X200 | 0.087 |
1-1/4 | 32 | 40 | 40 | -0.1~0.8 | 2.3 | 28 | 780X320 | 0.19 |
1-1/2 | 38 | 47 | 40 | -0.1~0.7 | 2.2 | 36 | 730X340 | 0.181 |
2 | 50 | 61 | 40 | -0.1~0.7 | 2.0 | 57.5 | 900X320 | 0.26 |
2-1/2 | 64 | 78 | 20 | -0.1~0.7 | 2.0 | 47.3 | 1000X240 | 0.24 |
3 | 75 | 90 | 20 | -0.1~0.6 | 1.8 | 58.3 | 1100X370 | 0.447 |
3-1/2 | 90 | 106 | 20 | -0.1~0.5 | 1.5 | 74 | 1060X440 | 0.494 |
4 | 100 | 116 | 20 | -0.1~0.5 | 1.5 | 82 | 1150x360 | 0.476 |
