50mm-200mm
Jingda Flex
39173200

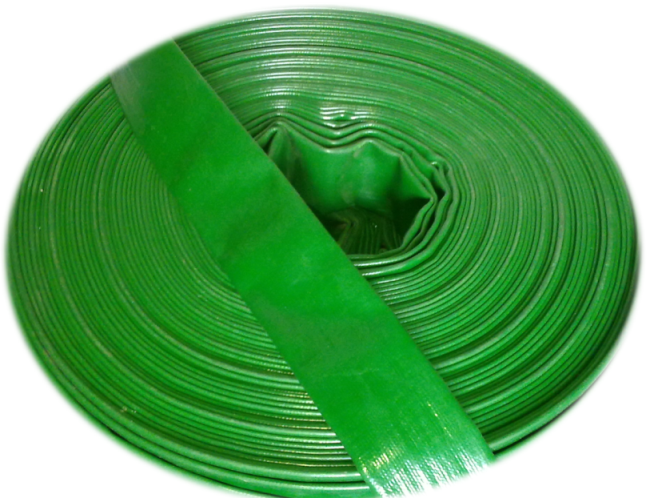

PVC lay flat irrigation hose 6 bar
Application: Suitable for conveying liquid in industry，agriculture irrigation，
mines and civil engineering.
Features: Online knitting and co-extrusion make the lay-flat hose have good
appearance and low weight; and excellent performances of high burst pressure and long service life. It is acid &alkali，aging resistant，stretching resistant，anti-wrinkle，non-toxic and flavorless.
Temperature: -5℃~65℃
PVC QUALITY HIGH-PRESSURE LAYFLAT HOSE
W.P. | B.P. | weight | Packing size | Volume | ||||
At 23℃ | ||||||||
Inch | I.D mm | Thickness mm | m/Roll | BAR | BAR | KG/roll | D x H cm | M3 |
3/4″ | 20 | 1.35 | 100 | 7 | 21 | 11.2 | 67x3.5 | 0.016 |
1″ | 26 | 1.5 | 100 | 7 | 21 | 16.5 | 68x5 | 0.023 |
1-1/4″ | 33 | 1.3 | 100 | 7 | 21 | 19 | 68x6 | 0.028 |
1-1/2″ | 41 | 1.45 | 100 | 7 | 21 | 23 | 67x7 | 0.031 |
2″ | 53 | 1.3 | 100 | 6 | 18 | 30 | 66x9 | 0.039 |
2.5″ | 78 | 1.45 | 100 | 7 | 21 | 43 | 72x11 | 0.057 |
3″ | 78 | 1.45 | 100 | 6 | 18 | 50 | 73x13 | 0.069 |
4″ | 104 | 2.3 | 100 | 6 | 18 | 86.5 | 77x18 | 0.107 |
5″ | 128 | 2.3 | 100 | 6 | 18 | 108 | 78x22 | 0.134 |
6″ | 155 | 2.4 | 100 | 6 | 18 | 160 | 84x26 | 0.183 |
8″ | 207 | 2.65 | 100 | 4 | 12 | 202 | 83x34 | 0.234 |
