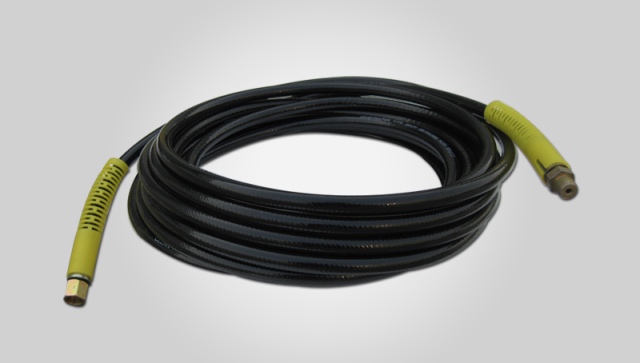

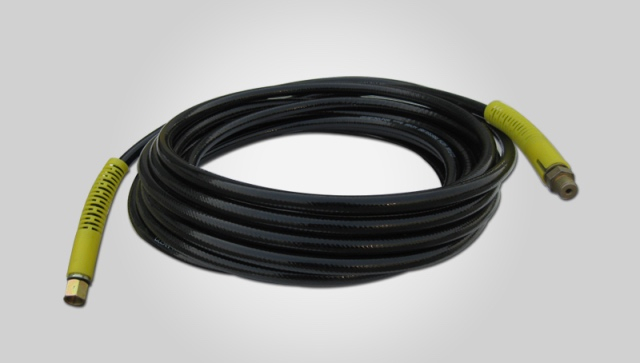

High Pressure - 2 PVC Braided Hose
Application: Ideal hose for industry, agriculture, fishery, construction, and families.
Features: This hose is transparent, non-toxic, tasteless, high pressure-resistance, stretch-proof, anticorrosion, aging resistance, nice shape, low weight and has other advantages.
Temperature: -5℃ ～ 65℃
Inch | I.D. | O.D. | Length | W.P. | B.P. | Weight | Packing size | Volume |
5/32 | 4 | 9 | 100 | 2.4 | 7.0 | 7 | 350x150 | 0.018 |
1/4 | 6 | 11 | 100 | 2.0 | 6.0 | 9 | 360x220 | 0.028 |
5/16 | 8 | 13.5 | 100 | 2.0 | 6.0 | 13 | 390x220 | 0.033 |
3/8 | 9 | 15 | 100 | 2.0 | 6.0 | 15 | 460x220 | 0.047 |
13/32 | 10 | 16 | 100 | 2.0 | 6.0 | 16.5 | 480x180 | 0.041 |
1/2 | 12 | 18 | 100 | 2.0 | 6.0 | 19 | 480x250 | 0.058 |
5/8 | 15 | 22 | 100 | 1.6 | 4.8 | 27 | 560x250 | 0.078 |
3/4 | 19 | 26 | 50 | 1.6 | 4.8 | 17 | 510x280 | 0.073 |
1 | 25 | 32 | 50 | 1.0 | 3.0 | 25 | 560x350 | 0.109 |
1-1/4 | 32 | 41 | 50 | 0.7 | 2.1 | 36 | 750x260 | 0.146 |
1-1/2 | 38 | 48 | 50 | 0.6 | 1.8 | 45 | 780x310 | 0.200 |
1-3/4 | 45 | 56 | 50 | 0.6 | 1.8 | 59 | 860x350 | 0.283 |
2 | 50 | 62 | 50 | 0.5 | 1.5 | 71 | 950x390 | 0.382 |
