32mm
Jingda Flex
39173200
Lock stitch NTS (no-torsion system) fiber hose
Application: A good hose for garden irrigation and family washing. It is suitable for conveying water, oil, gas and other liquids.

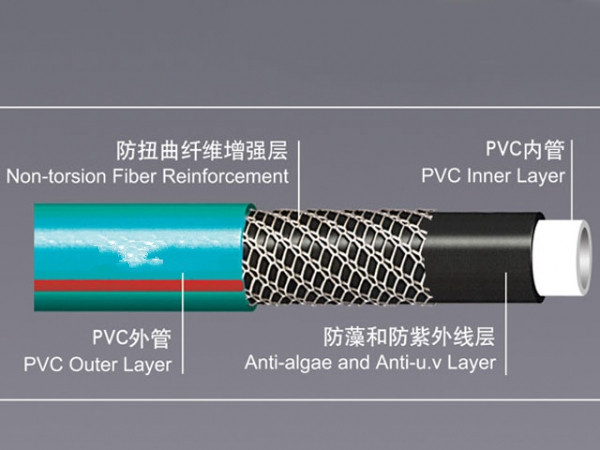

Features: This hose adopts crocheting knitting process, so it can bear more distortion and twisting.
Temperature: -5℃ to 65℃
Inch | I.D. | O.D. | Length | W.P. | B.P. | Weight |
1/2 | 12 | 17 | 15 | 0.8 | 2.5 | 2.3 |
1/2 | 12 | 17 | 25 | 0.8 | 2.5 | 3.7 |
1/2 | 12 | 17 | 50 | 0.8 | 2.5 | 7.5 |
5/8 | 15 | 22 | 15 | 0.7 | 2.0 | 4.1 |
5/8 | 15 | 22 | 25 | 0.7 | 2.0 | 6.7 |
5/8 | 15 | 22 | 50 | 0.7 | 2.0 | 13.5 |
3/4 | 19 | 25 | 25 | 0.6 | 1.8 | 6.9 |
3/4 | 19 | 50 | 25 | 0.6 | 1.8 | 14 |
1 | 25 | 31 | 25 | 0.5 | 1.6 | 8.9 |
1 | 25 | 31 | 50 | 0.5 | 1.6 | 17.5 |
Lock stitch NTS (no-torsion system) fiber hose
Application: A good hose for garden irrigation and family washing. It is suitable for conveying water, oil, gas and other liquids.
Features: This hose adopts crocheting knitting process, so it can bear more distortion and twisting.
Temperature: -5℃ to 65℃
Inch | I.D. | O.D. | Length | W.P. | B.P. | Weight |
1/2 | 12 | 17 | 15 | 0.8 | 2.5 | 2.3 |
1/2 | 12 | 17 | 25 | 0.8 | 2.5 | 3.7 |
1/2 | 12 | 17 | 50 | 0.8 | 2.5 | 7.5 |
5/8 | 15 | 22 | 15 | 0.7 | 2.0 | 4.1 |
5/8 | 15 | 22 | 25 | 0.7 | 2.0 | 6.7 |
5/8 | 15 | 22 | 50 | 0.7 | 2.0 | 13.5 |
3/4 | 19 | 25 | 25 | 0.6 | 1.8 | 6.9 |
3/4 | 19 | 50 | 25 | 0.6 | 1.8 | 14 |
1 | 25 | 31 | 25 | 0.5 | 1.6 | 8.9 |
1 | 25 | 31 | 50 | 0.5 | 1.6 | 17.5 |
