SJ45
Jingda
84778000

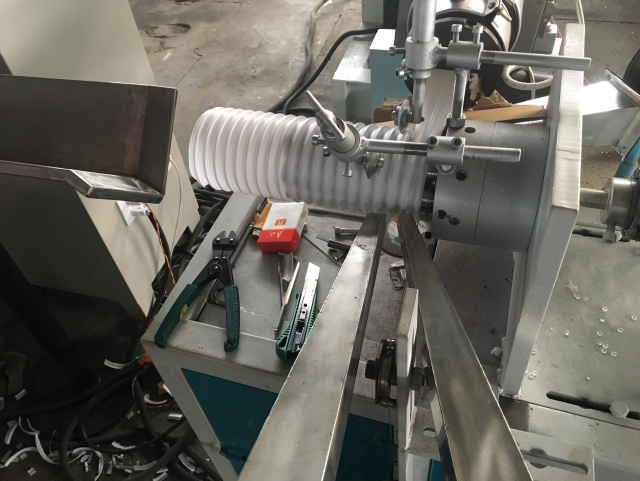

WC Toilet and Washing Basin Waste Pipe Machine with Steel Wire Reinforced
Material: PP
Features:Steel wire reinforced; light weight; good performance of stretching and bending.
Temperature range: -20℃—+90℃
Application:Applied on air conditioner, dehumidifier and other kinds of
system of air exhaust and pollution discharge.
Machine list:
SJ45/28 Extruder, SJ55/28 Extruder, SJ65/28 Extruder, SJ80/28 Extruder | 2 sets |
Spiral Forming Unit | 1 set |
Spiral Rod Hose Mould | |
Steel Wire Reinforcement Feeding Unit | 1 set |
Water cooling tank | 30m – 50m |
Winding unit | 1 set |
Mouth diameter (mm) | I.D. (mm) | O.D. (mm) | Pitch (mm) | Allowable pressure Below (20°C)Mpa/﹛kg/C㎡﹜ | Allowable pressure force Below (20°C)Mp/﹛mmHg) | Minimum bending radius (above mm) |
32 | 32 | 38±0.08 | 9.5 | 0.018﹛0.18﹜ | 0.017﹛132﹜ | 25 |
38 | 37.5 | 41.5±0.8 | 9.5 | 0.018﹛0.18﹜ | 0.017﹛132﹜ | 30 |
50 | 53.5 | 57.5±1.0 | 10.5 | 0.014﹛0.14﹜ | 0.017﹛132﹜ | 40 |
55 | 67.0 | 71.0±1.0 | 10.5 | 0.011﹛0.11﹜ | 0.017﹛132﹜ | 50 |
75 | 76.5 | 80.5±1.0 | 12.0 | 0.009﹛0.09﹜ | 0.017﹛132﹜ | 60 |
90 | 92.0 | 95.0±1.0 | 14.0 | 0.007﹛0.07﹜ | 0.017﹛132﹜ | 70 |
100 | 102.0 | 106.0±1.0 | 14.0 | 0.007﹛0.07﹜ | 0.017﹛132﹜ | 75 |
125 | 127.5 | 131.5±1.0 | 15.0 | 0.005﹛0.05﹜ | 0.011﹛82﹜ | 90 |
150 | 155.5 | 159.0±1.0 | 15.0 | 0.004﹛0.04﹜ | 0.008﹛66﹜ | 110 |
200 | 202.0 | 208.0±1.0 | 19.3 | 0.003﹛0.03﹜ | 0.006﹛48﹜ | 140 |
250 | 253.5 | 259.5±1.0 | 20.0 | 0.002﹛0.02﹜ | 0.005﹛37﹜ | 180 |
300 | 302.0 | 308.0±1.5 | 24.0 | 0.002﹛0.02﹜ | 0.004﹛29﹜ | 230 |
