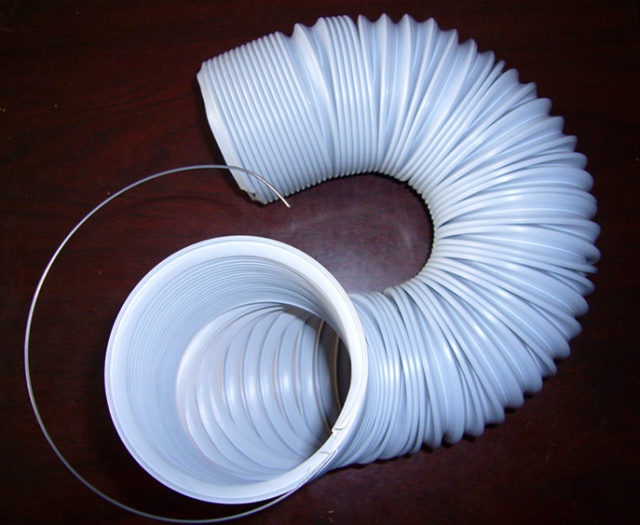

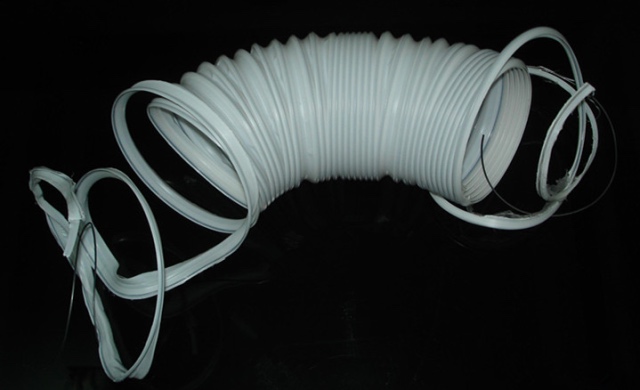

PVC/PU Spiral Extension Hose Extrusion Line
Introduction:
wall materials: PVC or PU, PVC/PU encased elastic wire welding on the tube wall, bending and highly flexible, stretching up to the original length of 2 to 4 times, release automatically returns to the original length.
Scope of application: household vacuum cleaners, industrial emissions equipment, dust and smoke emissions, drying machine, medical equipment, such as drying.
Machine list:
SJ55/28 Extruder | 1 set |
SJ45/28 Extruder | 1 set |

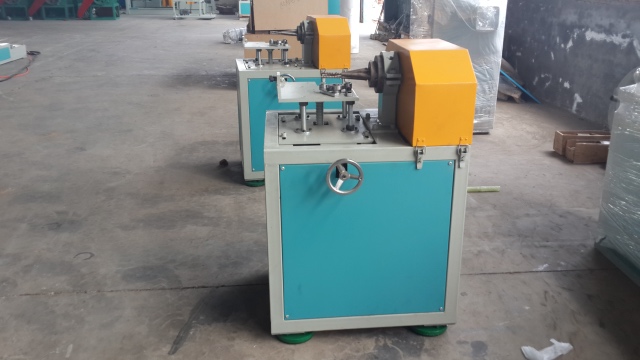

Spiral Forming Unit | 1 set |
Spiral Rod Hose Mould | |
Wire Reinforcement Feeding Unit | 1 set |
Water cooling tank | 30m – 50m |
Winding unit | 1 set |
PVC/PU Spiral Extension Hose | material | magnification ratio | O.D./wall thickness | Rib diameter |
PVC/PU & steel wire | 1:3～5 | Φ33/2.0 | Φ1.5 | |
1:3～5 | Φ38/2.5 | Φ1.5 or Φ2.0 | ||
1:3～5 | Φ42/2.5 | Φ2.0 | ||
1:3～5 | Φ50/2.5 | Φ2.0 |
