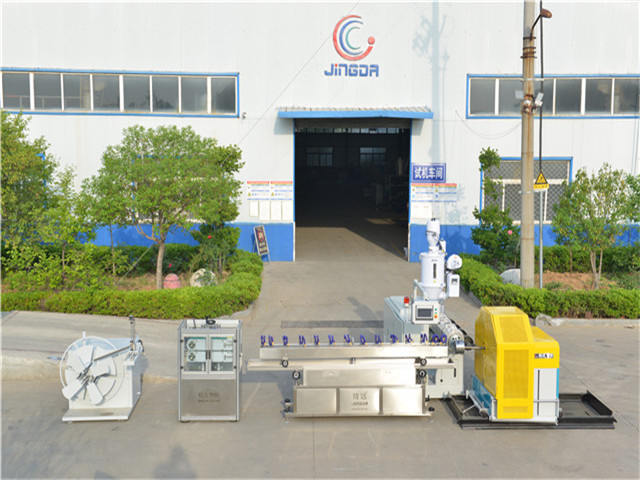

Spring Wire Reinforced PVC Hose Extrusion Line

Introduction: This hose is steel wire screwing inlaid, which has advantages of small bending radius, toxic tasteless and transparent. It has good adaptability to hard weather conditions and minus pressure.
Working Temperature: from -5℃ to +120℃
Applications: Be widely used for drawing and conveying water, oil and powder in factories, agriculture, engineering, food stuffs and sanitatary lines.

Quantity:
Availability:





Inquire Add to Basket

Model:
SJ65/SJ90/SJ120
Brand:
Jingda
Code:
84778000

Be widely used for drawing and conveying water, oil and powder in factories, agriculture, engineering, food stuffs and sanitatary lines.

Extruder	SJ45/30	SJ65/30	SJ90/30	SJ120/30	SJ150/30
Hose Diameter Range (mm)	¢12 - ¢25	¢20 - ¢50	¢50 - ¢102	¢75 - ¢150	¢102 - ¢200
Output (KG/H)	20 – 40	40 – 75	70 – 130	100 – 150	180-230
Installed power (KW)	30	40	50	75	100

British Measurement	Metric Measurement			W.P.	B.P.	Weight
British Measurement	I.D.		Length	W.P.	B.P.	Weight
Inch	mm	Thickness	M/roll	Mpa	Mpa	Kg/m
3/8	Φ10	2.8-3.0	100	0.5	1.5	0.2
1/2	Φ13	2.8-3.0	100	0.5	1.5	0.23
5/8	Φ16	2.3-2.8	100	0.5	1.5	0.25
3/4	Φ19	2.5-2.8	50	0.5	1.5	0.3
3/4	Φ19	3.6-3.8	50	0.5	1.5	0.4
1	Φ25	1.5-1.7	50	0.35	1.05	0.25
1	Φ25	1.7-1.8	50	0.4	1.2	0.3
1	Φ25	2.6-2.8	50	0.45	1.35	0.4
1-1/4	Φ32	2.3-2.5	50	0.3	0.9	0.5
1-1/4	Φ32	3.2-3.5	50	0.4	1.2	0.7
1-3/8	Φ34	2.9-3.0	50	0.3	0.9	0.6
1-1/2	Φ38	2.2-2.3	50	0.2	0.6	0.5
1-1/2	Φ38	3.5-3.8	50	0.35	1.05	0.8
1-1/2	Φ38	4.2-4.5	50	0.45	1.35	1
	Φ40	3.0-3.5	50	0.25	0.75	0.7
1-3/4	Φ45	3.0-3.3	50	0.25	0.75	0.8
1-3/4	Φ45	3.6-3.7	50	0.35	1.05	1.0
2	Φ50	2.5-2.8	50	0.2	0.6	0.8
2	Φ50	3.2-3.3	50	0.25	0.75	1.0
2	Φ50	3.7-3.8	50	0.35	1.05	1.2
2	Φ50	4.8-4.9	50	0.4	1.2	1.4
2-3/8	Φ58	3.8-4.0	40	0.25	0.75	1.2
2-3/8	Φ58	4.2-4.5	40	0.25	0.75	1.4
2-1/2	Φ64	2.8-3.1	40	0.12	0.36	1.2
2-1/2	Φ64	3.5-3.7	40	0.18	0.54	1.6
2-1/2	Φ64	5.0-5.5	40	0.25	0.75	2.0
3	Φ75	3.8-4.0	40	0.18	0.54	1.8
3	Φ75	4.3-4.7	40	0.2	0.6	2.0
3	Φ75	5.3-5.5	40	0.3	0.9	2.5
3-1/2	Φ89	3.8-4.2	30	0.15	0.45	2.5
3-1/2	Φ89	5.5-6.0	30	0.2	0.6	3.0
4	Φ102	4.2-4.3	30	0.1	0.3	2.6
4	Φ102	5.0-5.3	30	0.15	0.45	3.0
4-1/2	Φ110	5.0-5.2	20	0.3	0.9	4.5
5	Φ127	5.0-5.4	20	0.3	0.9	5.0
6	Φ152	6.0-6.3	20	0.3	0.9	6.0

Extruder	SJ45/30	SJ65/30	SJ90/30	SJ120/30	SJ150/30
Hose Diameter Range (mm)	¢12 - ¢25	¢20 - ¢50	¢50 - ¢102	¢75 - ¢150	¢102 - ¢200
Output (KG/H)	20 – 40	40 – 75	70 – 130	100 – 150	180-230
Installed power (KW)	30	40	50	75	100

British Measurement	Metric Measurement			W.P.	B.P.	Weight
British Measurement	I.D.		Length	W.P.	B.P.	Weight
Inch	mm	Thickness	M/roll	Mpa	Mpa	Kg/m
3/8	Φ10	2.8-3.0	100	0.5	1.5	0.2
1/2	Φ13	2.8-3.0	100	0.5	1.5	0.23
5/8	Φ16	2.3-2.8	100	0.5	1.5	0.25
3/4	Φ19	2.5-2.8	50	0.5	1.5	0.3
3/4	Φ19	3.6-3.8	50	0.5	1.5	0.4
1	Φ25	1.5-1.7	50	0.35	1.05	0.25
1	Φ25	1.7-1.8	50	0.4	1.2	0.3
1	Φ25	2.6-2.8	50	0.45	1.35	0.4
1-1/4	Φ32	2.3-2.5	50	0.3	0.9	0.5
1-1/4	Φ32	3.2-3.5	50	0.4	1.2	0.7
1-3/8	Φ34	2.9-3.0	50	0.3	0.9	0.6
1-1/2	Φ38	2.2-2.3	50	0.2	0.6	0.5
1-1/2	Φ38	3.5-3.8	50	0.35	1.05	0.8
1-1/2	Φ38	4.2-4.5	50	0.45	1.35	1
	Φ40	3.0-3.5	50	0.25	0.75	0.7
1-3/4	Φ45	3.0-3.3	50	0.25	0.75	0.8
1-3/4	Φ45	3.6-3.7	50	0.35	1.05	1.0
2	Φ50	2.5-2.8	50	0.2	0.6	0.8
2	Φ50	3.2-3.3	50	0.25	0.75	1.0
2	Φ50	3.7-3.8	50	0.35	1.05	1.2
2	Φ50	4.8-4.9	50	0.4	1.2	1.4
2-3/8	Φ58	3.8-4.0	40	0.25	0.75	1.2
2-3/8	Φ58	4.2-4.5	40	0.25	0.75	1.4
2-1/2	Φ64	2.8-3.1	40	0.12	0.36	1.2
2-1/2	Φ64	3.5-3.7	40	0.18	0.54	1.6
2-1/2	Φ64	5.0-5.5	40	0.25	0.75	2.0
3	Φ75	3.8-4.0	40	0.18	0.54	1.8
3	Φ75	4.3-4.7	40	0.2	0.6	2.0
3	Φ75	5.3-5.5	40	0.3	0.9	2.5
3-1/2	Φ89	3.8-4.2	30	0.15	0.45	2.5
3-1/2	Φ89	5.5-6.0	30	0.2	0.6	3.0
4	Φ102	4.2-4.3	30	0.1	0.3	2.6
4	Φ102	5.0-5.3	30	0.15	0.45	3.0
4-1/2	Φ110	5.0-5.2	20	0.3	0.9	4.5
5	Φ127	5.0-5.4	20	0.3	0.9	5.0
6	Φ152	6.0-6.3	20	0.3	0.9	6.0
