Yarn Reinforced PVC Hose Extrusion Line
You are here: Home » Extruder machine » PVC braided hose extrusion line » Yarn reinforced PVC hose extrusion line » Yarn Reinforced PVC Hose Extrusion Line

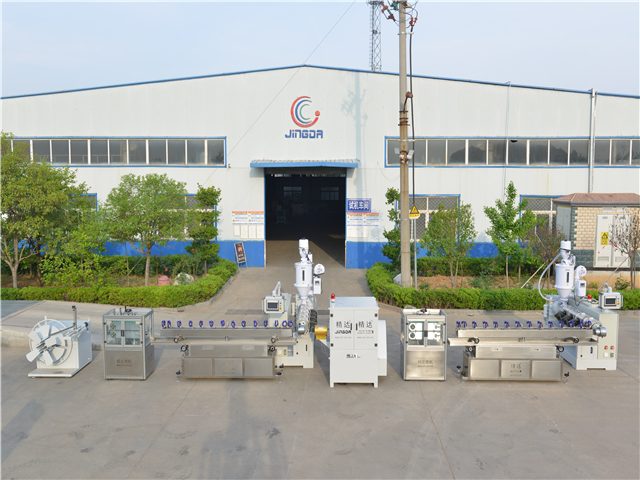

Yarn Reinforced PVC Hose Extrusion Line

Yarn Reinforced PVC Hose Extrusion Line.
Working pressure can get up to 20 bar.
Raw material is polyester yarn and soft PVC granule.
Production speed is from 11m/min to 22m/min.

Quantity:
  • SJ65/SJ75/SJ90
  • Jingda
  • 84772090

Application:

1)    PVC fiber reinforced hose for food stuff:  Toxic and tasteless. Working Temperatures:-5 to +65. It is mainly used for conveying milk beverage,distilled liquor,beer,jam,and other foods.

2) PVC Specialized High-Pressure Hose: It adopts high strength fiber and high-quality PVC resin as the material; and applied on compressed air in garages and service stations; factory air lines, pesticide spraying; automation machinery and pneumatic lines, and etc.

3) PVC Gas Hose: This product is made of special PVC modified material and double-deck composite structure. Corrosion resistant, aging resistant, soft, and easy to use, it is the special pipe to convey air.

4) PVC Shower Hose: Made from non-toxic PVC resin, it is good resistant, with long life span; light weight, soft, colorful, brilliant and beautiful; and high temperature resistance, can be applied for shower and bathroom.



5) PVC garden hose:  It is colorful, light, flexible, elastic, portable and with excellent adaptability; made from non-toxic ingredients. The hose has good weather and abrasion resistance and good burst strength, withstands nozzle shut-off. Being widely used for irrigation and washing in the parks, factories and families; gardening, car spray washing and floor cleaning.


Machine technical information:

Model

JDF45

JDF55

JDF65

JDF75

Extruder

SJ45/30

SJ55/30

SJ65/30

SJ75/30

Hose   Diameter Range (mm)

6 -16

8 - 25

12 - 50

20 - 50

Capacity   (KG/H)

20 – 40

30 – 60

40 – 80

60 – 110

Installed   power (kw)

35

42

50

65


Normal speed: 11m/min.

High speed: 22m/min.


Yarn bobbin: 3/4/5/6/7kg.

Bobbin quantity: 12+12, 14+14, 16+16, 17+17, 24+24.
