SJ65
Jingda
84778000
Advantages of our machines:
1. High production speed and stable quality.
1)12-18m/min, with water cooling, with new technology mold blocks, the line speed can reach to 12-18m/min, As our forming machine is equipped with 72 pairs of mold blocks, but the normal one only with 40-50 pairs.
2) Water cooling (under the table) and fan cooling together, ensure high speed!
2.Double size on the same mold blocks:
there are two pipe sizes on the same block, so the manufacturer can change the pipe diameter by adjusting the forming machine up and down.

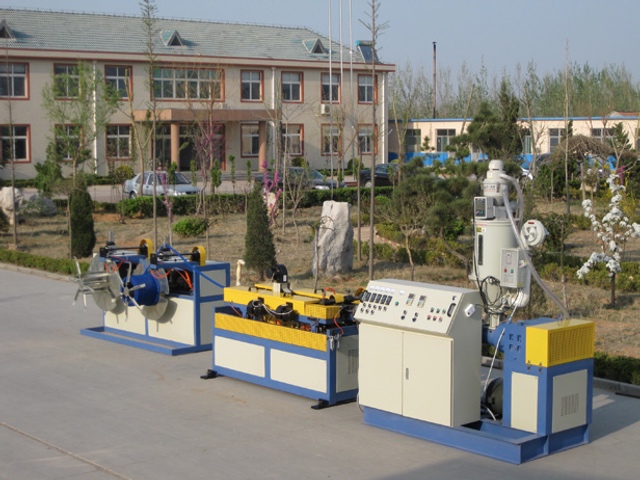

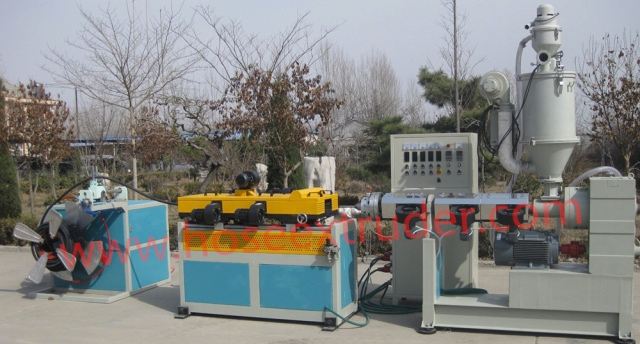

3. In our single-wall corrugated pipe machine,the mold blocks are not connected by chain piece by piece, and the blocks can move forward or backward on the mold base. The mold block adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of the up-market cars.
Suitable material: PA (nylon 6,nylon 66 , nylon 11), PVC , PP , PE, PPR .EVA, TPU , TPR.

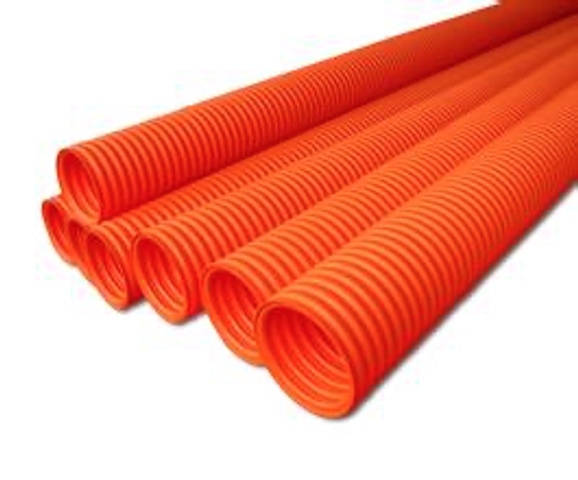

Machine can use to produce the following hose:
Washing machine water drainage hose
Cable through pipe
Water drainage siphon hose
PA(nylon) hose
Truck and car oil transfer hose
Medical use corrugated hose
Electricity use pipe
Siphon hose
Main Technical Parameter:
Extruder | SJ-30/25 | SJ-45/25 | SJ-65/25 | SJ-90/25 |
Molding (pairs) | 52 | 72 | 72 | 72 or above |
Pipe Diameter | 4-10 | 10-32 | 20-63 | 50-160 |
Speed(m/min) | 5-10 | 3-15 | 18-20 | 0.3-8 |
Output(kg/h) | 8 | 30 | 60 | 8 |
